Shifter linkage bushings
«
on:
July 15, 2006, 19:04:39 »
I tried to replace the bushings in my 4 spd shfter linkage today. But ran into a problem. The bushings I wanted to replace are for the two rods that attache to the plate that is held to the floor with 4 bolts. The bushings I have had a OD of 10MM on the part that should be inserted but the holes in this plate are 13.3 to 13.6MM (depending on where you measure them. The large Bushings for the shifter fit fine. The bushings for this area were missing not just broken but no trace. Do I have the wrong bushing? If so does anyone have the correct part number? Or do I have holes in the plate that are too large.
I would attach a pic but even when my camera is on the least quality setting the file is too large for this site to accept
Daryl
'64 230 SL
Serial # 508
Logged
JimVillers
Full Member
Gold
USA, VA, Virginia Beach
Posts: 573
Re: Shifter linkage bushings
«
Reply #1 on:
July 15, 2006, 19:37:27 »
Daryl .... It sounds like you need #82 and #83 to hold the ball of the shift lever.
Jim Villers
190SL, 230SL 5-Speed, 190E 2.3-16 Kompressor, MGB 5-Speed
«
Last Edit: July 15, 2006, 19:38:27 by JimVillers
»
Logged
Jim Villers
190SL, 230SL 5-Speed, MGB 5-Speed, MGB GT V8 RHD (real MG), 2016 SLK
psmith
Guest
Re: Shifter linkage bushings
«
Reply #2 on:
July 15, 2006, 19:40:30 »
Hey Daryl,
It took me a while to figure out the image size thing too. Just open it in "Paint" the standard Windows accessory. Then, from the "Image" menu select "Stretch/Skew" and reduce the horizontal and vertical size by the same percentage. I usually start at 35% and fiddle with it until I get down to the magic number.
MAKE SURE YOU "SAVE AS" A DIFFERENT FILE NAME SO YOU DON'T CHANGE YOUR ORIGINAL FILE! Ask me how I know.
Pete S.
Logged
dwilli3038
Guest
Re: Shifter linkage bushings
«
Reply #3 on:
July 15, 2006, 19:53:55 »
Thanks Jim, but I have those what I am having a problem with is the atachment of part 105 into plate 85
Daryl
'64 230 SL
Serial # 508
Logged
dwilli3038
Guest
Re: Shifter linkage bushings
«
Reply #4 on:
July 15, 2006, 20:01:04 »

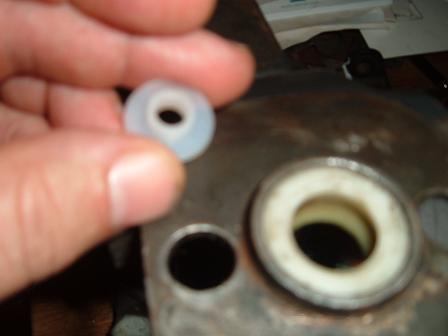

Here is a pic of what I am working with. Thanks Pete for the methodology on the pic
Download Attachment:
24.95 KB
Daryl
'64 230 SL
Serial # 508
Logged
dwilli3038
Guest
Re: Shifter linkage bushings
«
Reply #5 on:
July 15, 2006, 20:05:22 »
These pics may be a little better
Download Attachment:
25.71 KB
Download Attachment:
23.96 KB
Daryl
'64 230 SL
Serial # 508
«
Last Edit: July 15, 2006, 20:05:58 by dwilli3038
»
Logged
erickmarciano
Associate Member
Gold
Canada, Quebec, montreal
Posts: 545
Re: Shifter linkage bushings
«
Reply #6 on:
July 16, 2006, 08:34:28 »
I think the one you are showing us is # 21 you need # 86 I think
thanks
1999 ml320<sold it at last>
2004 Volvo s60 T5
1971 280sl
1962 VW bug
1954 Allstate vespa
1958 gs150 vespa
1962 gs160 vespa
Logged
1994 E500 W124
1971 280sl
1989 Porsche 930 coupe
1988 e30 m3
2001 ducati mh900
2006 ps1000
1962 Vespa GS160
dwilli3038
Guest
Re: Shifter linkage bushings
«
Reply #7 on:
July 16, 2006, 15:45:04 »
thanks for the help. I was able to find those parts on the K&K site and they are now on order
Daryl
'64 230 SL
Serial # 508
Logged
Naj ✝︎
Associate Member
Platinum
United Kingdom, Surrey, New Malden
Posts: 3163
Re: Shifter linkage bushings
«
Reply #8 on:
July 16, 2006, 16:46:52 »
Daryl,
What you have there seems to be # 97 which is also worth changing while you're in there.
You need 2 off #86.
MB Part # 111 992 0210 (This # is for 230SL < Chassis 14258, later ones are different)
naj
68 280SL
p.s: sorry, too late :oops:
«
Last Edit: July 16, 2006, 16:52:05 by naj
»
Logged
68 280SL
dwilli3038
Guest
Re: Shifter linkage bushings
«
Reply #9 on:
July 16, 2006, 18:17:01 »
Thanks NAJ. I will replace the 97s I have 4 of them. I did order 2 of the #86s from K&K so hopefully soon I will have it working well
Daryl
'64 230 SL
Serial # 508
Logged
