Anyone have a picture of a 4 speed trans?

[Shvegel]

Hi,
The thread on updating to a modern 5-speed has got me thinking about possible donors and I was wondering if anyone had a picture of a 4 speed transmission so I can see where the linkages attach etc?
Thanks,
Pat

[jeffc280sl]

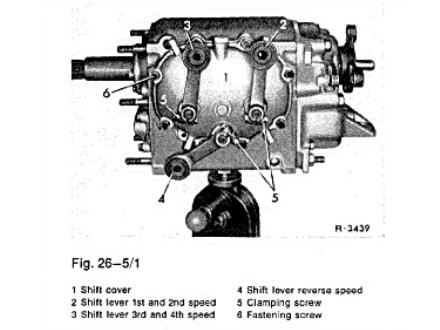

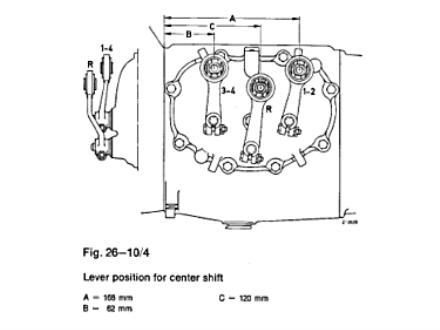

Hope this helps.

Download Attachment: gearbox1a.jpg
24.94 KB

Download Attachment: gearboxa.jpg
17.41 KB

Jeff C.
1970 280SL 4-speed

[Naj ✝︎]

Shvegel,

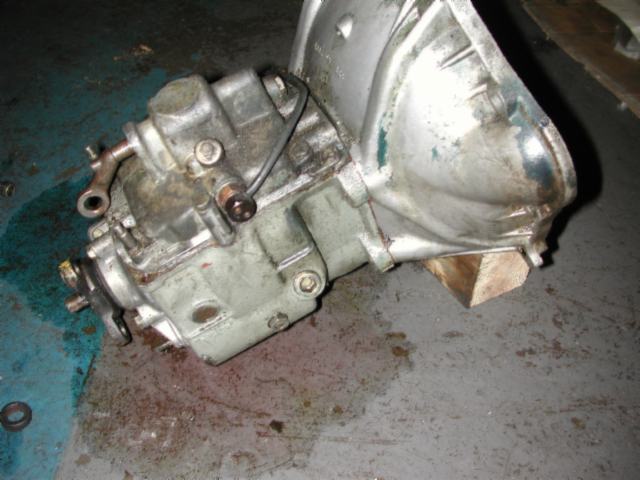

This is a picture of the box out of my 280 SL


Download Attachment: Gbx020.JPG
45.48 KB

I believe Jeff's pictures in the post below are for a column shift box.

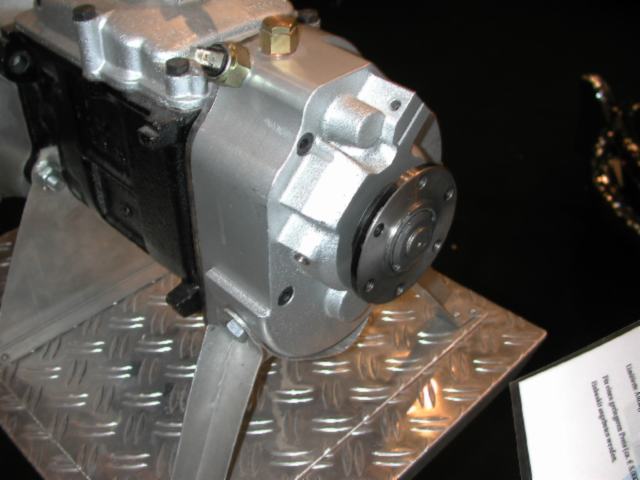

Here's a five speed conversion for a 300 SL box by a German company:


Download Attachment: Esn092.jpg
36.23 KB

naj

68 280SL

[jeffc280sl]

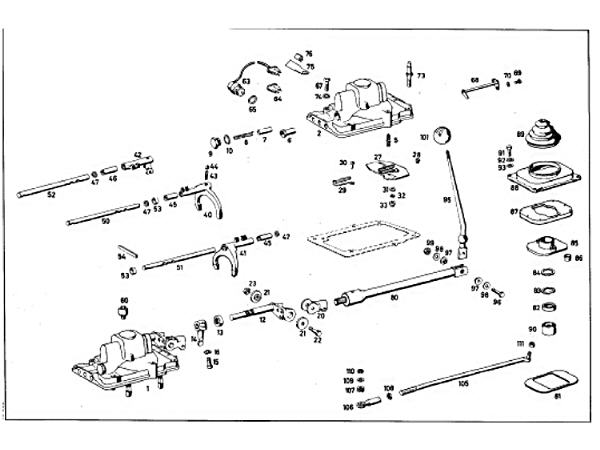

Naj is right.  Sorry for the error.  Maybe this will give you some idea of the linkage.

Download Attachment: gearbox.jpg
38.77 KB

Jeff C.
1970 280SL 4-speed

[Shvegel]

thanks everyone!
