Author Topic: Rear axle centering tool  (Read 3786 times)

auret

  • Guest
Rear axle centering tool
« on: November 07, 2008, 23:48:36 »
Could someone please send me a link to find the instructions to build the jig to centre my rear axle? Couldn't find it on the search feature.

Much obliged.
Logged

Peter van Es

  • Honorary Member
  • Platinum
  • ******
  • Netherlands, North Holland, Nederhorst Den Berg
  • Posts: 4074
Re: Rear axle centering tool
« Reply #1 on: November 08, 2008, 04:37:10 »
http://index.php?topic=1195

Note it's 6 pages. Regrettably diagrams of the Jig's construction were not uploaded to the forum and the outside link has gone away.

Peter
Logged
1970 280SL. System Admin of the site. Please do not mail or PM me questions on Pagoda's... I'm not likely to know the answer.  Please post on the forum instead!

bpossel

  • Guest
Re: Rear axle centering tool
« Reply #2 on: November 08, 2008, 05:31:51 »
Here ya go...
Bob  :)

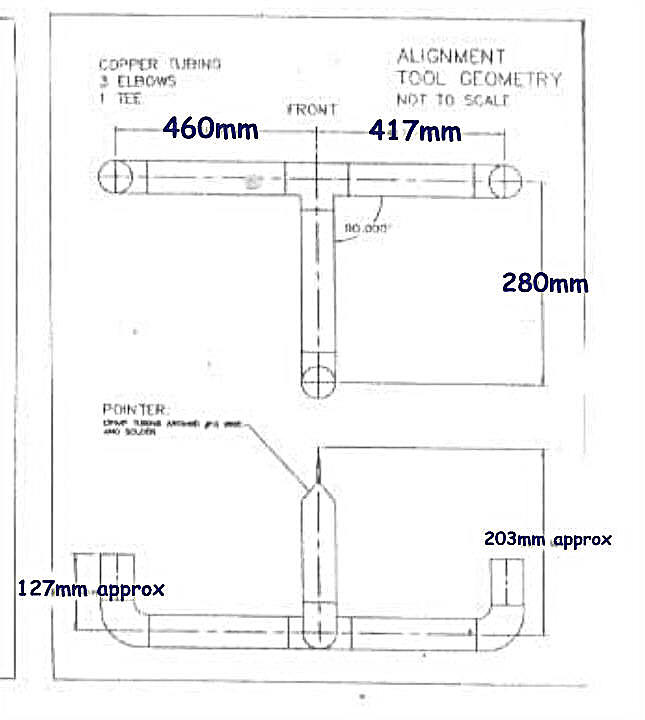

Download Attachment: aligntool2.jpg
40.69 KB

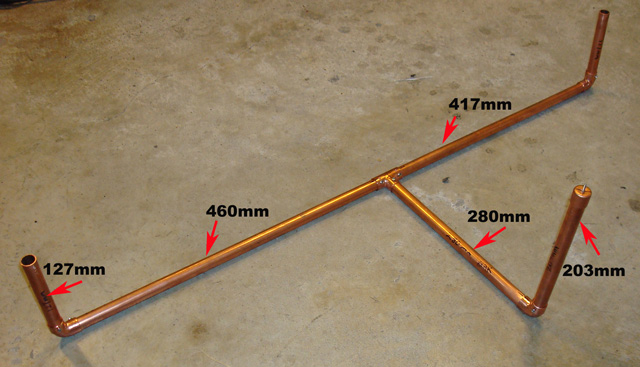

Download Attachment: aligntool.jpg
91.3 KB
Logged

ja17

  • Full Member
  • Platinum
  • ******
  • USA, OH, Blacklick
  • Posts: 7414
Re: Rear axle centering tool
« Reply #3 on: November 09, 2008, 21:19:40 »
Hello,

I like Dan Caron's method. Use a level to set everything up. While the differential is out of the car and on the floor, level each axle tube with shims between it and the floor, then set the vertical mount to 90 degrees plumb.  Very acurate digital levels are fairly inexpensive these days and would make the job easy.
Logged
Joe Alexander
Blacklick, Ohio
1969 Dark Olive 280SL
2002 ML55 AMG (tow vehicle)
2002 SLK32 AMG (350 hp)
1982 300TD Wagon turbo 4spd.
1963 404 Mercedes Unimog (Swedish Army)
1989 flu419 Mercedes Unimog (US Army)
1998 E430
1974 450SLC Rally
1965 220SE Finback
