Author Topic: alternator belt adjustment  (Read 7937 times)

jpsenft

  • Full Member
  • Junior Level
  • *
  • USA, MD, Silver Spring
  • Posts: 26
alternator belt adjustment
« on: August 26, 2013, 19:19:52 »

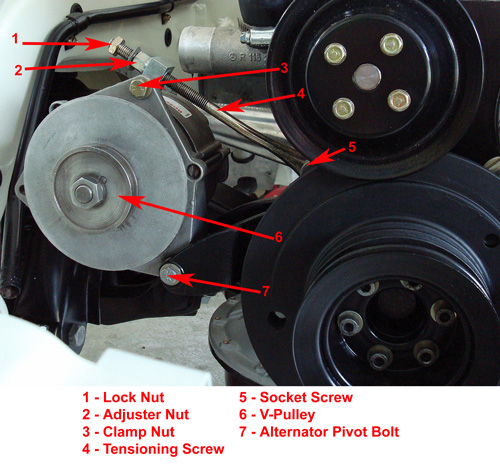

I would like to eliminate a belt squeal before leaving for Williamsburg.   Referring to the diagram from the tech section

http://www.sl113.org/wiki/uploads/Electrical/alt1.jpg

What steps need to be done to  slightly tighten  my alternator belt?   I guess I don't see from the picture how tightening (or loosening) the adjuster nut 2 moves the alternator AWAY from the block to tighten the belt.  Which bolt(s) need to be loosened before adjustment?   What drives the alternator away from the block to tension the belt?  Do I need to use a pry bar to push alternator away and then tighten everything?
Thanks,
Jim
1965 230SL
Silver Spring, Maryland

WRe

  • Full Member
  • Platinum
  • ******
  • Germany, Hessen, Seeheim-Jugenheim
  • Posts: 1450
Re: alternator belt adjustment
« Reply #1 on: August 26, 2013, 20:30:57 »
Hi,
First  loose nuts 3 and 7 a little bit to make the alternator free to move.
Now you can tighten/loose the belt with nut 2: up to tighten, down to loose.
With nut 1 (counter or lock nut) you fix nut 2 after adjustment.
Don't forget to tighten nuts 3 and 7 again.
...WRe

jpsenft

  • Full Member
  • Junior Level
  • *
  • USA, MD, Silver Spring
  • Posts: 26
Re: alternator belt adjustment
« Reply #2 on: August 26, 2013, 20:45:04 »
Thanks....This is what I thought, but I still don't understand how loosening the adjuster nut 2 (up the shaft) "pulls" the alternator out with it, thereby tightening the belt.  Even if nut 3 is loosened, what pushes the alternator out (tighter)?
Thanks again,
Jim
230SL
1965 230SL
Silver Spring, Maryland

WRe

  • Full Member
  • Platinum
  • ******
  • Germany, Hessen, Seeheim-Jugenheim
  • Posts: 1450
Re: alternator belt adjustment
« Reply #3 on: August 26, 2013, 21:26:07 »
Hi,
Look here at parts 89 and 97: www.sls-hh-shop.de/en/230-280SL-W113/15-Electrical-Equipment-at-Engine/15-c-Starter-and-Generator/.
Nut 2 pulls/pushes the clamp block with the clamp screw 3 through it's channel.
...WRe

jpsenft

  • Full Member
  • Junior Level
  • *
  • USA, MD, Silver Spring
  • Posts: 26
Re: alternator belt adjustment
« Reply #4 on: August 26, 2013, 22:32:05 »
Thanks!  That explains it.  My problem was thinking the adjusting nut was a simple nut.  Could not see the lower half of the nut assembly which actually "pulls" the alternator out.
Jim
1965 230SL
Silver Spring, Maryland
