Retractable Seatbelts
« on: November 08, 2004, 14:24:38 »
My car has the original factory seatbelts, but I've seen many restored cars with new retractable seat belts installed.  Do any of you have personal experience with these?  Are they safe?  Who sells them?

Thanks.

Joe
'71 280SL

rwaw

  • Guest
Re: Retractable Seatbelts
« Reply #1 on: November 08, 2004, 14:36:57 »
Joe,

Got mine from Pagodeteile in Germany, total cost incl delivery in UK £ 175.
Very easy to fit but some problems in daily use ----> see my reply in Malc's post "Seatbelt Question" !
Currently awaiting seatbelt guide part from local MB dealer.

280SL 1969 Euro RHD
« Last Edit: November 08, 2004, 14:41:03 by rwaw »

mdsalemi

  • Pagoda SL Board
  • Platinum
  • ******
  • USA, NC, Davidson
  • Posts: 7059
Re: Retractable Seatbelts
« Reply #2 on: November 08, 2004, 15:58:03 »
Hello Ouzo,

I had the retractables installed when the car was restored.  The ones I had installed were original MB seat belts, and they were installed according to a Mercedes Benz Technical Bulletin issued in the mid 1970's.  It is not an easy install: there was drilling and welding into the body, and the chrome cap that the soft top mechanism pokes through needed to be modified and then re-chrome plated.

I love them; I would not own a vehicle without them--I just don't feel safe unless restrained--but that's me.  Others of course don't wear any seat belts and some go motorcycling w/o a helmet--it's personal preference.

Since it was a retrofit, there are bound to be a couple of snags.  I found 2.

1)  The belt tension is strong; yesterday as I drove my car to its winter resting place my left shoulder was actually sore.  This could easily be cured with one of those aftermarket pads.  Lots of other seatbelts fall into that category which is why they make those pads in the first place.

2)  The latch mechanism is on a long "wire", and this does have a tendency to hit and thus scratch the center console wood.

The problem that some others seem to have is the fact that without a B pillar, the belt comes from below.  Since I am only 5'8" this isn't an issue for me, but for those taller it might be a problem.


Michael Salemi
1969 280SL
Signal Red w/Black Leather
Restored
Michael Salemi
Davidson, North Carolina (Charlotte Area) USA
1969 280SL (USA-Spec)
Signal Red 568G w/Black Leather (Restored)
2023 Ford Maverick Lariat Hybrid "Area 51"
2023 Ford Escape Hybrid
2024 Ford Mustang Mach Ex PEV

Ed Cave

  • Guest
Re: Retractable Seatbelts
« Reply #3 on: November 08, 2004, 17:38:32 »
Michael:

Do you have any photos of this seatbelt installation you could share?

Thanks.

Ed Cave
Atlanta, GA

1964 356C
1971 280SL

mdsalemi

  • Pagoda SL Board
  • Platinum
  • ******
  • USA, NC, Davidson
  • Posts: 7059
Re: Retractable Seatbelts
« Reply #4 on: November 08, 2004, 18:10:43 »
Ed and others,

My car is put to bed for the winter.  However I did find a couple of interior shots that might show you how it all works.  However, they are something like 1MB files; when I try to get them down to the 80K file limit of this site, they are useless to look at.


Michael Salemi
1969 280SL
Signal Red w/Black Leather
Restored
Michael Salemi
Davidson, North Carolina (Charlotte Area) USA
1969 280SL (USA-Spec)
Signal Red 568G w/Black Leather (Restored)
2023 Ford Maverick Lariat Hybrid "Area 51"
2023 Ford Escape Hybrid
2024 Ford Mustang Mach Ex PEV

n/a

  • Guest
Re: Retractable Seatbelts
« Reply #5 on: November 08, 2004, 18:29:46 »
Michael, can you e-mail me the photos directly?

Thanks!

Ouzo


mdsalemi

  • Pagoda SL Board
  • Platinum
  • ******
  • USA, NC, Davidson
  • Posts: 7059
Re: Retractable Seatbelts
« Reply #6 on: November 09, 2004, 08:34:15 »
Gents,

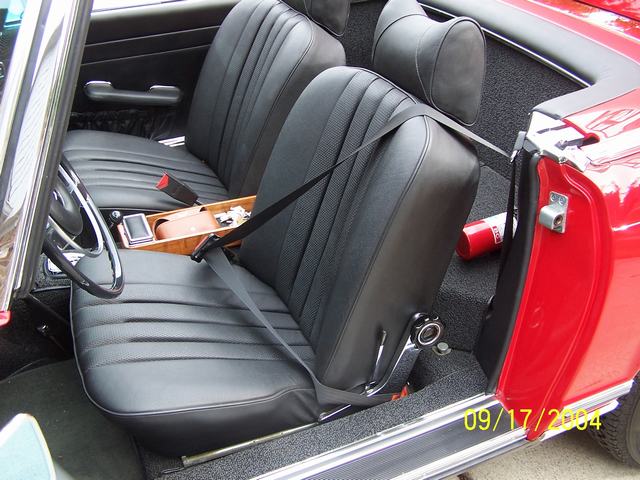

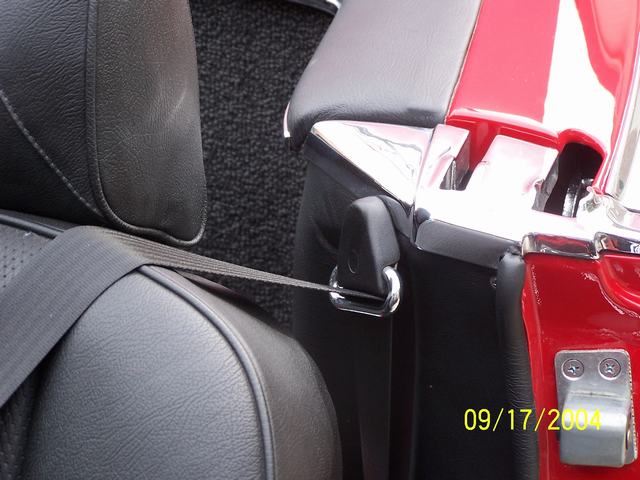

If this works, here are two photos of the seat belt installation.  This is the "factory authorized" version done to MB specs based upon their technical bulletin, and uses sedan belts.  One photo is of the belt in use (sans human) and the other is the mounting point on the non existent B pillar, under the chrome cap.  I hope this gives everyone an idea.

The installation requires cutting, drilling and welding to secure the anchor points etc.

Those astute observers will also note the fire extinguisher of recent posts mounted behind the seat; it is just "stuck" to the carpet and does not move.


Download Attachment: 100_0576.JPG
62.68 KB

Download Attachment: 100_0577.JPG
49.51 KB

Michael Salemi
1969 280SL
Signal Red w/Black Leather
Restored
« Last Edit: November 09, 2004, 08:35:43 by mdsalemi »
Michael Salemi
Davidson, North Carolina (Charlotte Area) USA
1969 280SL (USA-Spec)
Signal Red 568G w/Black Leather (Restored)
2023 Ford Maverick Lariat Hybrid "Area 51"
2023 Ford Escape Hybrid
2024 Ford Mustang Mach Ex PEV

rwmastel

  • Full Member
  • Platinum
  • ******
  • USA, OH, Canal Winchester
  • Posts: 4634
  • Pagoda SL Group: 20+ years and going strong!
Re: Retractable Seatbelts
« Reply #7 on: November 10, 2004, 08:14:57 »
quote:
Originally posted by mdsalemi

This is the "factory authorized" version done to MB specs based upon their technical bulletin, and uses sedan belts.  One photo is of the belt in use (sans human) and the other is the mounting point on the non existent B pillar, under the chrome cap.

Mike,
It's interesting that the MB spec installation does not use the factory supplied and threaded hole located in the small triangular space, just below where your seat belt is mounted.  I think I have that bulletin, I will have to look at it again!  I do recall that it involved cutting, inserting a support plate, and welding.

Rodd
Powell, Ohio, USA
1966 230SL, Euro, Auto, Leather, both  tops
1994 E420
Rodd

Did you search the forum before asking?
2017 C43 AMG
2006 Wrangler Rubicon
1966 230SL auto "Italian"

pagode.info

  • Guest
Re: Retractable Seatbelts
« Reply #8 on: November 11, 2004, 03:19:11 »

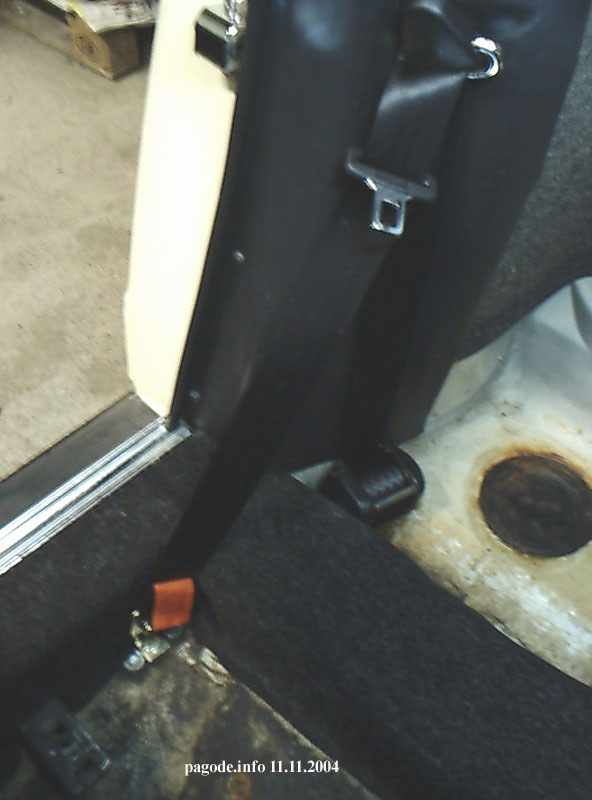

For all those who do not want to weld
or cut here are some pics of another
way of installation using the orginal
seat belt anchorpoints on b-post & tunnel.

Download Attachment: seat belt points.jpg
64.12 KB

Download Attachment: seat belts.jpg
70.18 KB

Tom

www.pagode.info

France

  • Associate Member
  • Silver
  • ****
  • Austria, Vorarlberg, Schruns
  • Posts: 402
Re: Retractable Seatbelts
« Reply #9 on: November 11, 2004, 09:54:58 »
Hi Guys,

There is a ton of info our there on this subject, because I searched it last spring when I wanted to get rid of my Kongols.  In addition there is a wealth of advice on this site using the Search button.

Trice
1968 280SL US, signal red/bl leather, auto, kinder
Trice
1968 280SL US, signal red/bl leather, auto, kinder seat
Austrian Alps
Think of your Pagoda as a woman with a past...

hauser

  • Guest
Re: Retractable Seatbelts
« Reply #10 on: November 11, 2004, 11:55:20 »
Gernold did my seatbelt installation and it turned out great.  I feel safer especially if I have one of my kids with me.

1969 280sl 5 spd        1999 ML320          Gainesville,Fl.

rwmastel

  • Full Member
  • Platinum
  • ******
  • USA, OH, Canal Winchester
  • Posts: 4634
  • Pagoda SL Group: 20+ years and going strong!
Re: Retractable Seatbelts
« Reply #11 on: November 11, 2004, 17:53:52 »
quote:
Originally posted by pagode.info

For all those who do not want to weld
or cut here are some pics of another
way of installation using the orginal
seat belt anchorpoints on b-post & tunnel.

Download Attachment: seat belt points.jpg
64.12 KB

Download Attachment: seat belts.jpg
70.18 KB

Tom

www.pagode.info



This is exactly what I would like to do.  Now, if I could just stop spending money on the house (paint, curtains, patio, etc.) and start spending it on the Pagoda!!
