Author Topic: ground wire  (Read 2375 times)

dwilli3038

  • Guest
ground wire
« on: July 16, 2006, 18:45:02 »
Can anyone tell me the correct placement of this ground wire? It was not hooked to anything. When I removed the injector pump I found the wire laying on the pump.

Download Attachment: DSCF5384r.JPG
40.15 KB

Daryl
'64 230 SL
Serial # 508
Logged

dwilli3038

  • Guest
Re: ground wire
« Reply #1 on: July 16, 2006, 18:46:40 »

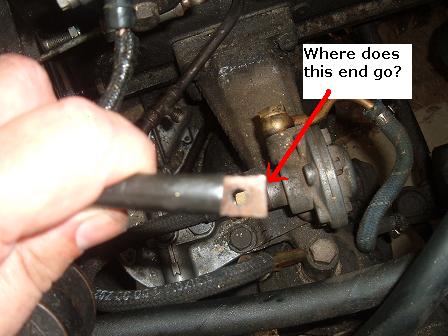

here is the other of the wire

Download Attachment: DSCF5388r.JPG
40.65 KB

Daryl
'64 230 SL
Serial # 508
Logged

J. Huber

  • Full Member
  • Platinum
  • ******
  • USA, CA, Cedar Ridge
  • Posts: 3061
Re: ground wire
« Reply #2 on: July 16, 2006, 19:08:19 »
Hey Daryl.

I have a large ground strap near that area. The one end you show that is connected on yours: on mine it is a bit closer to the IP pump on the block. My other end goes over to the main harness sort of near the ballast on the wheel well.

James
63 230SL
Logged
James
63 230SL

91lux

  • Guest
Re: ground wire
« Reply #3 on: July 16, 2006, 23:40:55 »
Hi

My wire goes to the point where the negative cable from battery is terminated to the body, just below the resistor/battery. Actually it is a braided strap from the engine point as yours to the body.


91lux
Logged
