Rear Axle Band Strapping & Clamp
« on: January 29, 2008, 04:55:25 »
Hello!

Does anyone have a pic or diagram that would show how to correctly weave (route) the band strapping with clamp for the rear axle boot?

I thought there was an earlier posting and diagram, but cant locate it :oops: .

Many Thanks :) !
Bob


bpossel  (Memphis, TN.)
'71 280SL  /  '97 E320
« Last Edit: January 29, 2008, 04:56:15 by bpossel »
Logged

jeffc280sl

  • Guest
Re: Rear Axle Band Strapping & Clamp
« Reply #1 on: January 29, 2008, 08:00:59 »
Bob,

I have my old axle parts hanging around.  I'll get the boot clamp out later today and take a pic and post it.

Jeff C.
1970 280SL 4-speed
Logged

ja17

  • Full Member
  • Platinum
  • ******
  • USA, OH, Blacklick
  • Posts: 7414
Re: Rear Axle Band Strapping & Clamp
« Reply #2 on: January 29, 2008, 20:43:28 »
Hello Bob,

Here is a diagram of the one style compliments of the 190SL group tech manual.

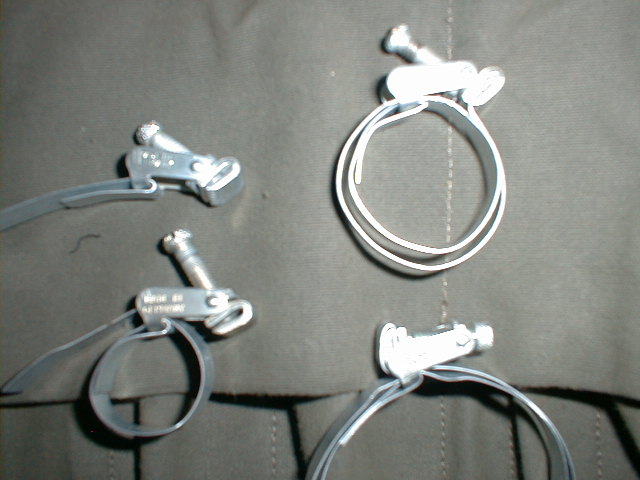

Download Attachment: CLAMPS.JPG
40.51 KB


Joe Alexander
Blacklick, Ohio

« Last Edit: January 29, 2008, 20:45:04 by ja17 »
Logged
Joe Alexander
Blacklick, Ohio
1969 Dark Olive 280SL
2002 ML55 AMG (tow vehicle)
2002 SLK32 AMG (350 hp)
1982 300TD Wagon turbo 4spd.
1963 404 Mercedes Unimog (Swedish Army)
1989 flu419 Mercedes Unimog (US Army)
1998 E430
1974 450SLC Rally
1965 220SE Finback

bpossel

  • Guest
Re: Rear Axle Band Strapping & Clamp
« Reply #3 on: January 30, 2008, 04:35:54 »
Thanks Joe (and Jeff)!
The diagram helps a lot!
Bob


bpossel  (Memphis, TN.)
'71 280SL  /  '97 E320
Logged

bpossel

  • Guest
Re: Rear Axle Band Strapping & Clamp
« Reply #4 on: January 30, 2008, 07:37:26 »
I also found this info and pic on the 190sl website.  Thanks Jim Villers!

1. Top left shows the banding inserted in the clamp with approx. 1" bent down under.

2. Bottom left shows the banding circling the hose.

3. Top right shows the banding in the U clamp. (Here Fritz added an extra item, that was to bend about 1/8" over before inserting it into the U clamp).



bpossel  (Memphis, TN.)
'71 280SL  /  '97 E320
Logged

jeffc280sl

  • Guest
Re: Rear Axle Band Strapping & Clamp
« Reply #5 on: January 31, 2008, 10:13:14 »
I can add to those pics

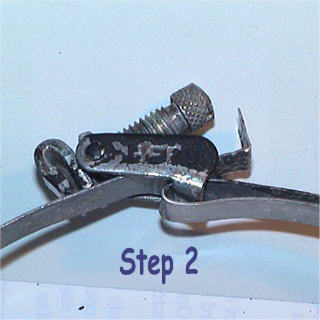

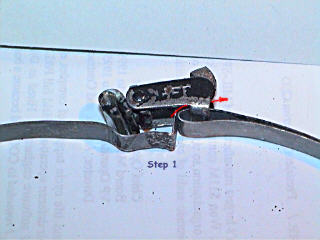

Download Attachment: boot strap 006a.jpg
14.88 KB

Download Attachment: boot strap 005a.jpg
19.12 KB

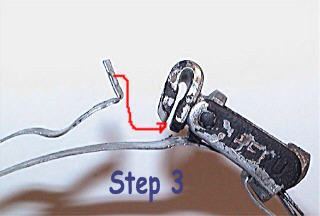

Download Attachment: boot strap 004a.jpg
13.7 KB

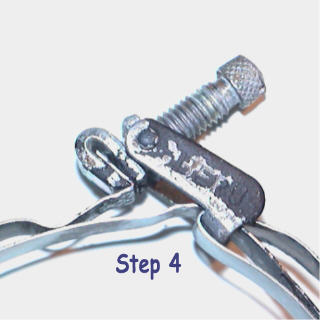

Download Attachment: boot strap 003a.jpg
16.49 KB

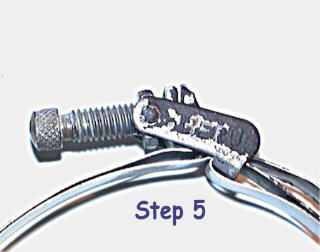

Download Attachment: boot strap 002a.jpg
15.24 KB

Jeff C.
