automatic shifter optional light electrical

[jasonbitkowski]

Hello,
Can I get some information from those knowledgable as to where on a 71 280sl with optional light in automatic shifter. My question is where exactly if any diagram shows does the live and grounding wires attach? Can you send or post copies if have? Thanks, Jason

[Benz Dr.]

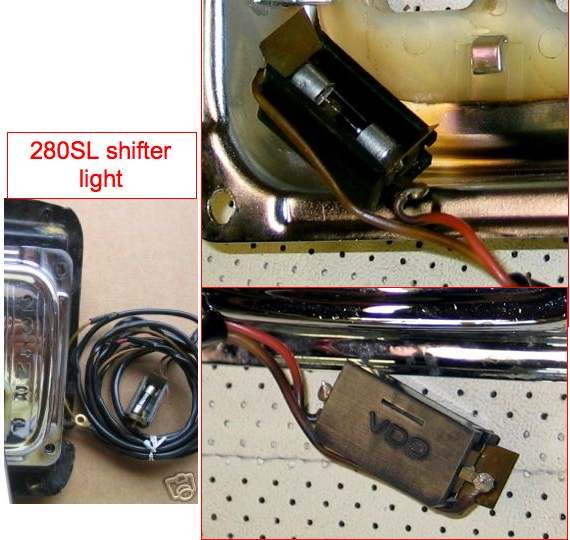

If I remember correctly, the live wire goes to one side of the light bulb and the ground goes under one of the mounting screws for the shifter box.

Dan Caron's
 SL Barn
benzbarn@ebtech.net
 slbarn.mbz.org
  1 877 661 6061

[grn280SL]

My shifter is illuminated with headlights, was this optional?

[66andBlue]

Which end do you have in mind, bulb end or the other?
The bulb sits in a housing to which the wires are attached.
The brown wire goes to ground (pick your spot)and the other one should be long enough to reach a hot connector on the lamps in any of the instruments or the clock.




Alfred
1966 blue 230SL automatic
