Under dash electrical plug mount?
« on: August 15, 2008, 03:01:01 »

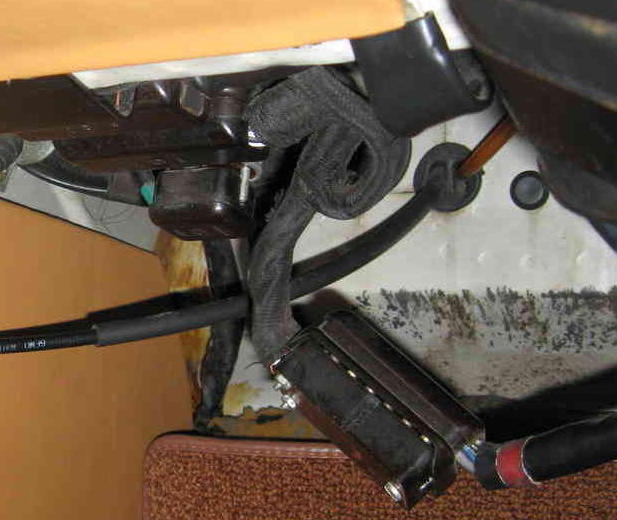

The electrical plug for the wires that go up the steering column just hangs under the dash as shown in the attached picture.  Given that the two other plugs in the same vicinity are neatly mounted on a plate, I find it hard to believe that MBZ would just leave the third plug hanging but I haven't figured out where it should be mounted.  Any suggestions?

Thanks


waqas

  • Full Member
  • Platinum
  • ******
  • USA, TX, Austin
  • Posts: 1738
Re: Under dash electrical plug mount?
« Reply #1 on: August 18, 2008, 18:14:19 »
I believe one side of this connector is supposed to be mounted to an L-shaped plate which is bolted underneath the dash.

Waqas (Wa-kaas) in Austin, Texas

lurtch

  • Full Member
  • Silver
  • ****
  • USA, CA, Santa Rosa
  • Posts: 376
  • " ICON 66 "
Re: Under dash electrical plug mount?
« Reply #2 on: August 28, 2008, 11:23:44 »
Hello Graham - - - In the photo you posted one can clearly see a "J" bracket just hanging there empty. I believe that is intended to be a stirrup for the large wire bundle.

Regards,  Larry in CA
